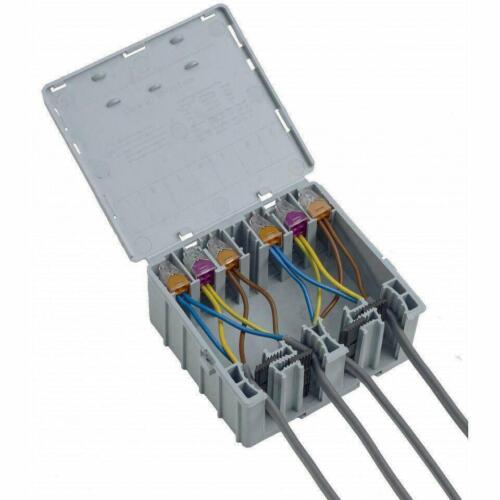

XLA Wagobox Electrical Junction Box

BS EN60670-22: Compliant

BS 5733 MF: When used with Wago 222 and 773 connectors or Wago 221 and 2273 connectors using the appropriate adapters (sold separately). Use as directed in the BS 5733 MF instructions.

Ingress Protection: IP2X
Dimensions: Width 126 mm. Depth 115 mm, Height 55 mm

Conductor sizes: from 0.08mm² to 6mm²
The maximum permitted number of separately supplied individual circuits is two
The maximum number of individual conductor connections is 36, based on the installation of twelve 3-core cables of 1mm²
The maximum number of 6mm² connections is 18 based on installation of six 3-core cables

Voltage Rating: 450V

Mounting buttons sold separately. No cables or connectors are included
