SKU:WAGO-XL

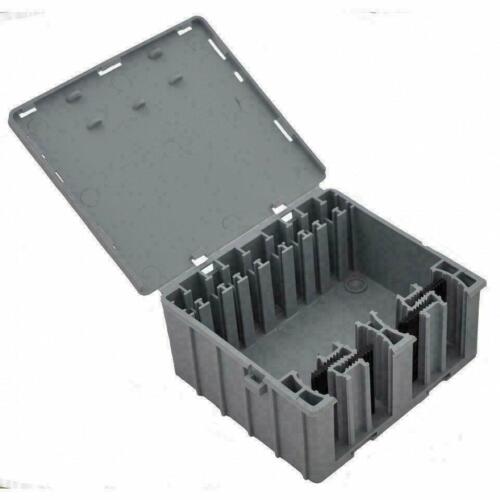

XL Wagobox Electrical Junction Box
£9.95
£9.95
Sale
Sold out
Tax included.
Shipping calculated at checkout.
Re-stocking soon
Couldn't load pickup availability
About the Product
BS EN60670-22: Compliant
BS 5733 MF: When used with Wago 221, 2773 and 2273 connectors. Use as directed in the BS 5733 MF instructions.
Ingress Protection: IP2X
Dimensions: 162mm x 115 mm x 55 mm
Conductor sizes: 0.14mm² to 4mm²
The maximum permitted number of separately supplied individual circuits is two. The maximum number of individual conductor connections is 36, based on the installation of twelve 3-core cables of 1mm². The maximum number of 4mm² connections is 24 based on installation of six 4-core cables
Voltage rating: 450V.
Mounting buttons sold separately, No cables or connectors are included.
