SKU:WAGO-3
3 PACK - Wagobox Junction Box
£8.99
£8.99
Sale
Sold out
Tax included.
Shipping calculated at checkout.
Re-stocking soon
Couldn't load pickup availability
About the Product
3 Pack of WAGOBOXES

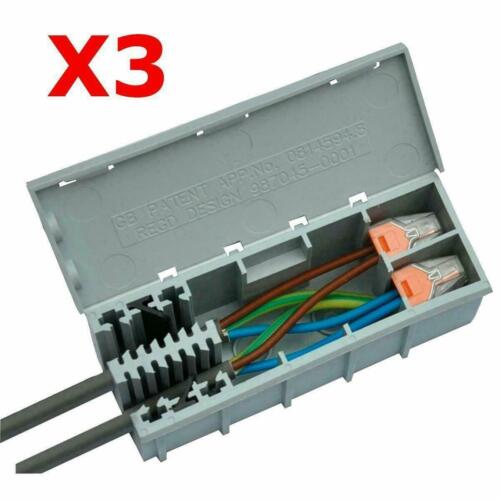

The Wagobox junction box is for use with the Wago 773 and 222 series Pushwire and Cage Clamp Connector blocks. The Wagobox has a fast fit slide action mounting point so the box can be fixed to a surface after the connectors have been fitted into the box by using the Wagobox mounting button (sold separately).
The Wagobox junction box is for use with the Wago 773 and 222 series Pushwire and Cage Clamp Connector blocks. The Wagobox has a fast fit slide action mounting point so the box can be fixed to a surface after the connectors have been fitted into the box by using the Wagobox mounting button (sold separately).
BS EN60670-22: Compliant.
BS 5733 MF accessory when used with Wago 222 and 773 connectors or Wago 221 and 2273 connectors using the appropriate adapters (sold separately). Use as directed in the BS 5733 MF instructions.
Ingress Protection: IP2X
Dimensions for single junction box: 39mm x 44mm x 108mm
Cable Clamp Capacity:
3 x 6.0mm² Twin & Earth or 4 x 4.0mm² Twin & Earth or 6 x 1.0, 1.5 or 2.5mm² Twin & Earth or 6 x 1.0 or 1.5mm² 3-core & Earth. 6 x Flex up to 8mm OD
Current Rating: Up to 41A
Voltage Rating: 400v/4kv
Mounting buttons may be sold separately.
