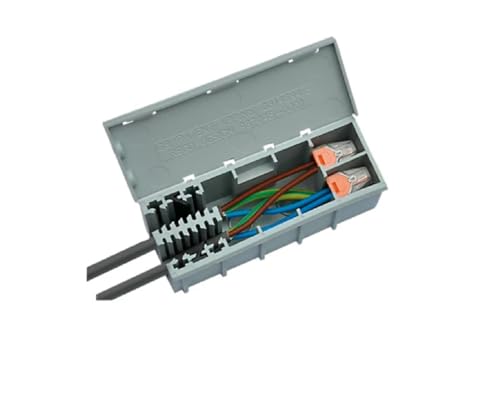

WAGOBOX Electrical Light Multipurpose Junction Box for WAGO Connectors Various Pack Sizes

Perfect for installing downlights. For cable sizes up to 2.5mm. Overall Diameter 8mm.
​
​Connections
​Wago 224-101 Pushwire to Cage Clamp Connector
Wago 224-112 2x Pushwire to Cage Clamp Connector
Wago 260 Modular Terminals
​Wago 294 Modular Terminals
​
​Applications
​Lighting and Power circuits. Circuit repairs and alterations.

BS EN60670-22 Compliant

Ingress Protection: IP2X

Weight 28g

Cable sizes 3x 1.5mm² Twin & Earth or 3x1.0mm² Twin & Earth flat solid core to 1x0.5mm² -- 1x1.5mm² flex

Overall Cable Diameter 3.0mm to 8mm

Dimensions for single junction box: 39mm x 29mm x 95mm

Current rating Up to 24A

Voltage rating 400V / 4KV

Maximum connector capacity 4 x 224-112 or 4 x 224-101 connectors

Mounting buttons, cable & connectors not included
